Let's run SICM
in the browser

SICM the book is a beautiful artifact; Emmy the library is its faithful Clojure(Script) descendant.¹ Until now, running an exercise from one against the other meant firing up a JVM REPL — or shrugging and reading the math. Bemmy puts both in a browser tab. emmy.env is pre-referred so D, simplify, up, Lagrange-equations, find-path are all in scope from the first keystroke; mafs.cljs and mathbox.cljs draw the curves; localStorage keeps your pages; a URL hash carries them to anyone you paste it to.

The substrate

Scittle is the Small Clojure Interpreter wrapped for use in a <script> tag — Clojure-the-language, evaluated at runtime in the browser, with no shadow-cljs build for the user's code.² It ships with Reagent and a plugin system; we built Bemmy as a Scittle plugin that registers Emmy's seventy-five namespaces with the SCI context. The part that matters:

(ns scittle.emmy
  (:require [emmy.sci]
            [mafs.sci]
            [mathbox.sci]
            [scittle.core :as scittle]))

(defn init []
  (scittle/register-plugin! ::emmy emmy.sci/config)
  (mafs.sci/install!)
  (mathbox.sci/install!)
  (scittle/eval-string
   "(require '[emmy.env :refer :all])"))

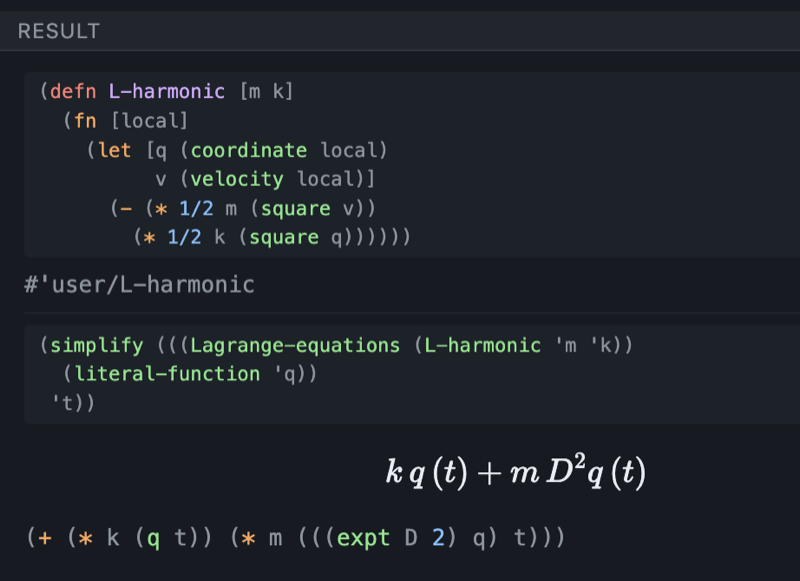

With that loaded, the first eval is the Euler–Lagrange equation for a harmonic oscillator, returned as an Emmy expression and rendered inline as TeX:

(defn L-harmonic [m k]
  (fn [local]
    (let [q (coordinate local)
          v (velocity local)]
      (- (* 1/2 m (square v))
        (* 1/2 k (square q))))))

(simplify (((Lagrange-equations (L-harmonic 'm 'k))
  (literal-function 'q))
 't))

The editor

A <textarea> would have shipped on day one but read like a regression after thirty seconds with an Emmy expression. The editor is CodeMirror 6 with @nextjournal/clojure-mode for paredit-style structural editing, the standard CM defaultHighlightStyle in light mode and oneDark in dark mode, and a vim toggle in the toolbar for the muscle-memory crowd.³ Cmd-Enter splits the buffer into top-level forms, evaluates each in sequence against the live SCI context, and notebooks the results — every form's value, not just the last.

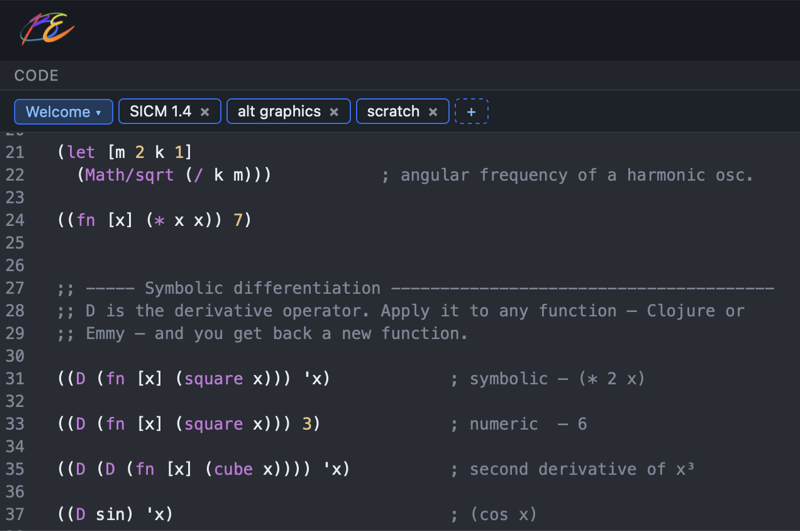

Pages are named source buffers persisted to localStorage. There's a small dropdown to the left of the user-tabs strip — Welcome ▾, SICM ▾, depending on which template is showing — that lists read-only system pages we ship with the build. Pick one; the editor loads it. Type a single keystroke and it forks transparently into a fresh user page named Welcome 1 and switches to it.⁴ The system page itself stays canonical, gets fresh content on every build, and never collides with edits....

The translator

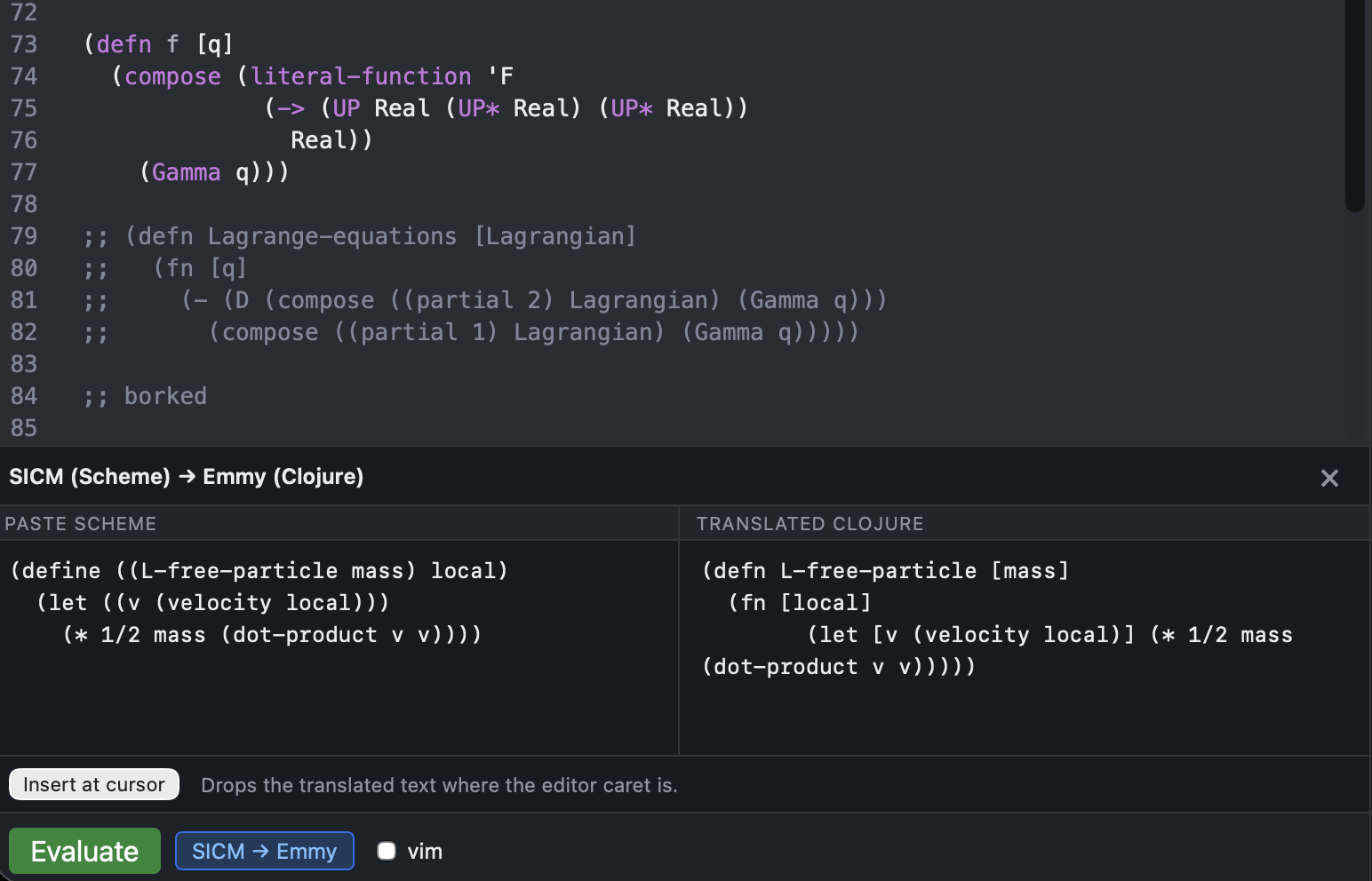

SICM is written in scmutils Scheme, not Clojure. To stop reading it with one hand and translating with the other, Bemmy ships a SICM → Emmy shelf — toggle it from the toolbar, paste Scheme on the left, the right pane shows the Clojure that comes out of a small parser-transformer-emitter pipeline. Insert at cursor drops the result into the editor at the caret. The translator handles curried defines, let / let* / letrec, internal define lifting to letfn, named-let rewriting to loop, do-loops, values / receive, and a wide rename map for Scheme primitives that have direct Clojure analogues.⁵

The signature transformation is the curried define — a SICM idiom that the obvious recursive descent almost handles, then trips on:

;; in
(define ((L-harmonic m k) local)
  (let ((q (coordinate local))
        (v (velocity local)))
    (- (* 1/2 m (square v))
       (* 1/2 k (square q)))))

;; out
(defn L-harmonic [m k]
  (fn [local]
    (let [q (coordinate local)
          v (velocity local)]
      (- (* 1/2 m (square v))
         (* 1/2 k (square q))))))

Visualization

Visualization is where SICM most rewards being run rather than read. Phase portraits, optimized paths, animated wave equations, Lagrangian surfaces — the book is full of plots whose authors assumed you'd be sitting at scmutils with a graphics frame already open. mafs.cljs and mathbox.cljs are the same libraries emmy-viewers wraps for Clerk, and most of emmy-viewers itself turns out to be Clerk-agnostic Reagent components.⁶ Bring those across, mount them in our result pane when an eval'd value smells like Reagent hiccup, and SICM book code that draws becomes SICM book code that draws.

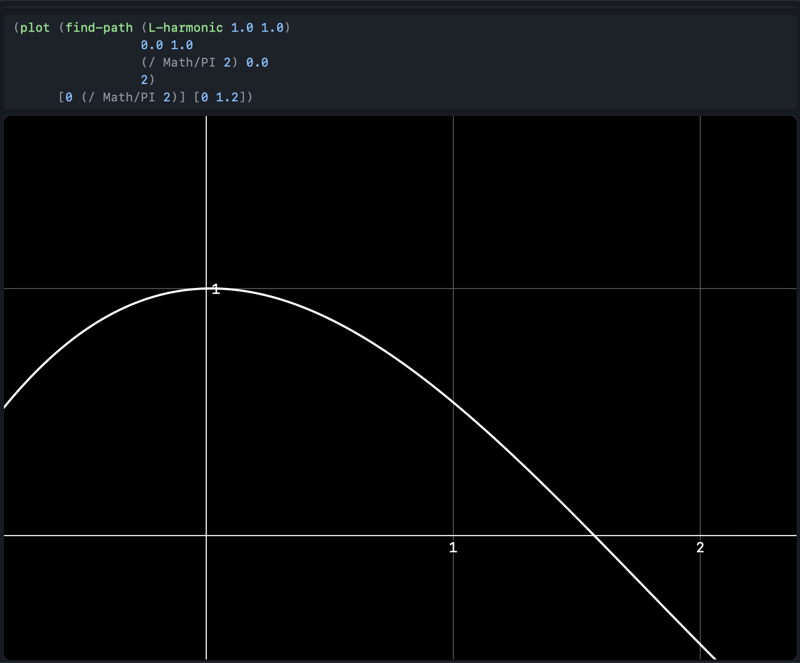

The simplest API is plot — anything callable that returns a number for a numeric input. Defaults to [-5, 5] × [-5, 5]; pass extra args to override.

(plot Math/sin)

(plot Math/cos [(- Math/PI) Math/PI])

;; The path returned by find-path is just a callable polynomial:
(plot (find-path (L-harmonic 1.0 1.0)
                 0.0 1.0
                 (/ Math/PI 2) 0.0
                 2)
      [0 (/ Math/PI 2)] [0 1.2])

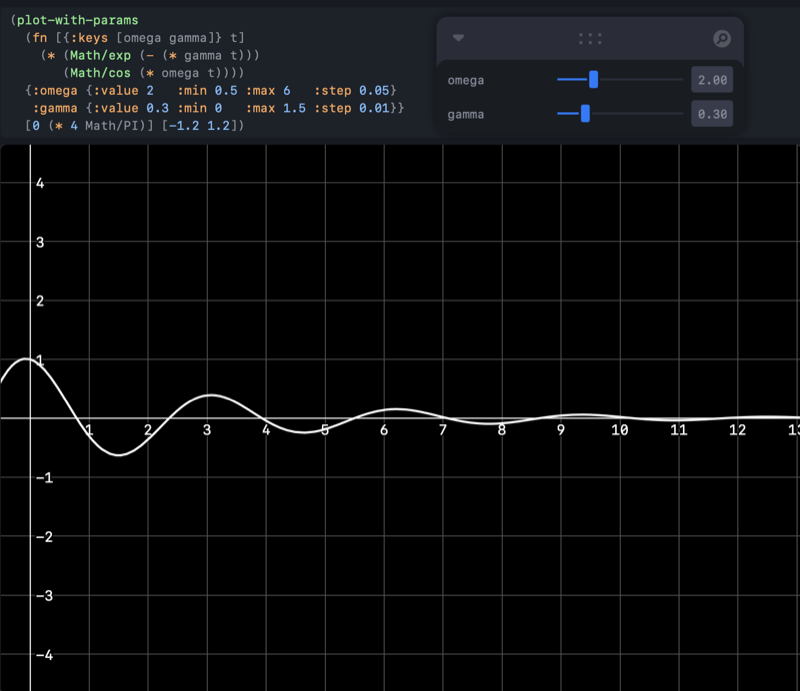

plot-with-params wires a Reagent atom of parameters through a Leva control panel into a Mafs OfX. Drag a slider, watch the curve update — the kind of "what does this coefficient even mean" exploration that's tedious without a live tool.⁷

(plot-with-params
  (fn [{:keys [omega gamma]} x]
    (* (Math/exp (- (* gamma x)))
       (Math/cos (* omega x))))
  {:omega {:value 2   :min 0.5 :max 6   :step 0.05}
   :gamma {:value 0.3 :min 0   :max 1.5 :step 0.01}}
  [0 (* 4 Math/PI)] [-1.2 1.2])

SICM is more imperative than functional about plotting. The book builds a frame, mutates it with graphics-clear and plot-function, then leaves the result on screen. To translate book code that uses this, Bemmy ships a small shim that backs frame with a Reagent atom holding a viewBox and a vector of drawables, mutates it in place, and auto-renders whenever a frame atom turns up as the value of the last form evaluated.⁸ The book's (plot-function win f t0 t1 step) works as written.

And then animation. animate takes a function of (t, x), mounts a 60Hz timer at component mount, rebuilds the OfX curve every tick. Travelling waves, standing waves, harmonic-oscillator phase evolution — all one form away.⁹

(animate (fn [t x] (Math/sin (- x t)))
         [(- (* 2 Math/PI)) (* 2 Math/PI)]
         [-1.5 1.5])

Three dimensions

mathbox.cljs is the same trick at WebGL fidelity: a Reagent wrapper around the JavaScript MathBox library, which sits on Three.js. The data → draw composition pattern is the same as Mafs's, just one dimension richer. Interval emits points along t; Line draws them. Area emits a grid; Surface draws it. Camera orbits on click-and-drag.¹⁰

[mathbox/MathBox
  {:container {:style {:height "400px" :width "100%"}}}
  [mb/Cartesian
    {:range [[-2 2] [-2 2] [-2 2]] :scale [1 1 1]}
    [mb/Axis {:axis 1}] [mb/Axis {:axis 2}] [mb/Axis {:axis 3}]
    [mb/Area
      {:rangeX   [-1.5 1.5]
       :rangeY   [-1.5 1.5]
       :width    32
       :height   32
       :channels 3
       :expr     (fn [emit q v i j time]
                   (emit q (* (sin time) (- (* 0.5 v v) (* 0.5 q q))) v))}]
    [mb/Surface {:shaded true :color "#3090ff"}]]]

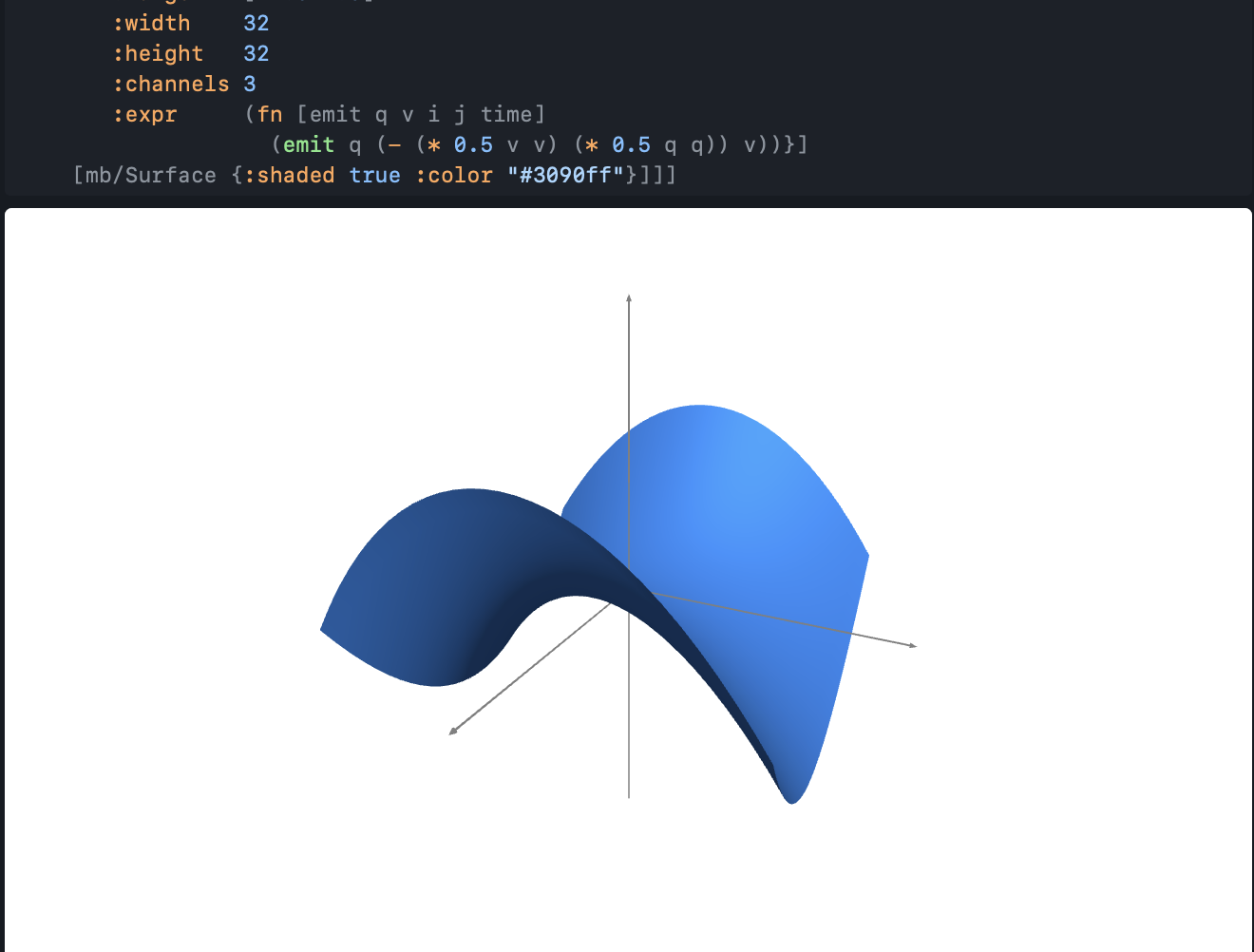

The time argument in MathBox's :expr callback is the global animation clock — referenced inside the curve's expression, the curve animates with no separate timer. The harmonic oscillator's circular phase portrait, unwound along a time axis, becomes a rotating helix; the harmonic Lagrangian L(q, v) = ½v² − ½q² is a saddle surface over its phase space. Both ship pre-loaded on the 3D system page.

Sharp edges

A few of the things we hit that didn't go in the body. SCI's analyzer resolves symbols at analysis time, which means forward references between defns inside the user's (uncompiled) source fail until you sprinkle (declare …) at the right spots.¹¹ cljs.core/Atom isn't a SCI-resolvable symbol, so (instance? cljs.core/Atom v) aborts the init eval-string mid-stream — replaced with a try-deref + shape check. The hiccup detector at the result-pane boundary uses (or (keyword? h) (fn? h)) for the head; symbols are deliberately excluded so the quoted-form fragments emmy-viewers returns don't false-trigger a render. And every result row gets a :key prefixed with an eval-id that bumps on each Cmd-Enter, forcing form-2 Reagent components — Leva-driven plots, animated curves — to remount cleanly when the source changes.

The Share button in the toolbar copies a URL whose hash carries the current page's name and source as base64-of-utf8 JSON. On load, if the hash starts with #s=, Bemmy decodes it, adds the page to your localStorage with a collision-safe name (your existing Welcome stays put; the imported one becomes Welcome 1), switches to it, and clears the hash so a refresh doesn't re-import. The shared page survives reload and stays around until you delete it.

Where it lands

Five megabytes of JavaScript, twenty woff2 files, a SCI evaluator, Emmy's seventy-five namespaces, two visualization libraries, a CodeMirror, a Leva, a Three.js. It serves from any static host with a permissive MIME type — no backend, no build on the deploy side. Open the page; in a few seconds you have an editor, a Lagrangian, a plot. Drag a slider; the curve responds. Let the harmonic oscillator's path-finder run; watch a polynomial trace from (0, 1) to (π/2, 0). Paste an excerpt from the book into the translator shelf; click Insert; evaluate. The book runs.
